Air-Way Terminology – Fittings or Adapters?

Thursday, January 10, 2019

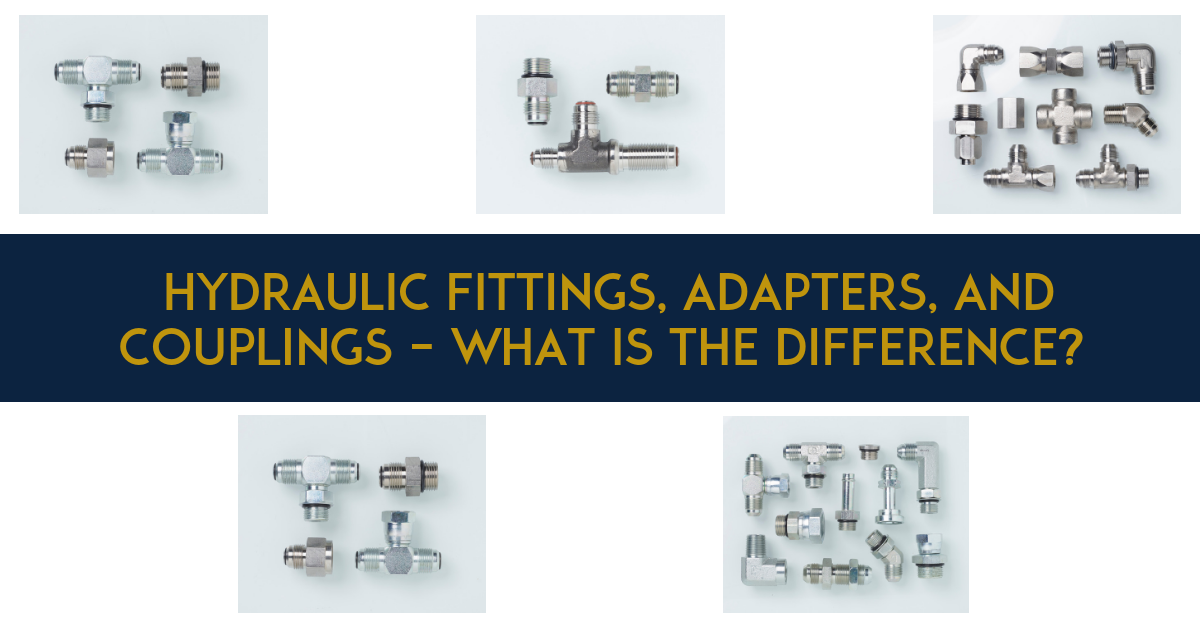

Hydraulic fittings, adapters, and couplings – what is the difference?

If you go to the homepage of Air-Way Global Manufacturing, in big, bold letters it says, “Hydraulic Fittings & Adapters Manufacturer.” In our line of work, these two words - fittings and adapters – are quite interchangeable. And to compound things, here are some more terms people generally use to describe a hydraulic connection:

Fittings

Adapter

Adaptor (European Spelling)

Connector

Coupling

Do all these terms mean the exact same thing? We’ve talked with our team of experts including engineering, production, and sales reps to get the details.

Hydraulic Connection Terminology 101 from Air-Way

Hydraulic Fittings

Hydraulic Fittings connect conductors such as hoses, pipes and tubes in a hydraulic system. Most fittings have a male and female component that jointo form a connection that helps contain and direct the flow of hydraulic fluid. Different fitting shapes and sizes allow engineers to change flow direction, prevent leaks, and maintain pressure, and crimping or brazing is the most common way to use them.

pipecoupling is a specialized fitting that attaches two hydraulic lines to each other, end-to-end, and cannot be removed without first detaching one of the hydraulic lines from some other object.  A quick couplingon the other hand, is typically attached to the end of a hose and allows assembly without the use of tools. Quick couplings allow users to change attachments on their equipment quickly.

Hydraulic Adapters/Connectors

While fittings generally have one end crimped onto a hose, most hydraulic adapters/connectors are connected by thread engagement on each end. A hydraulicadapter is the connector the hose is assembled to; it’s essentially a fitting with connection threads on two (or more) sides. Adapters are common in an in-line connection from a port connection, and often used to reduce or enlarge the size of the connection or hose line – aka jump size adapters. To put it another way, adapters can be viewed as components that are used to bridge a hose assembly or hard line tubing to another port. They serve a variety of purposes and are found in practically all sizes, styles and thread types.

Air-Way is a Total OEM Hydraulic Solutions Provider

Hydraulic fittings and adapters are what Air-Way has specialized in manufacturing for Original Equipment Manufacturers (OEMs) and distributors worldwide since 1950.  Together, Air-Way Manufacturing and Hydra-Flex Inc.,(acquired by Air-Way in 1997) represent one Air-Way, and support customers with complete hydraulic hose assembly, adapter products, and hydraulic fittings. ​

In short, when you work with Air-Way Manufacturing, you have a reliable supplier oftotal hydraulic assemblies, from start to finish, and available anywhere in the world. If you’d like to talk to us more about our OEM and other hydraulic hose assembly and fitting solutions, please contact us today.
