O-Ring Port Non-Adjustable Stud Ends

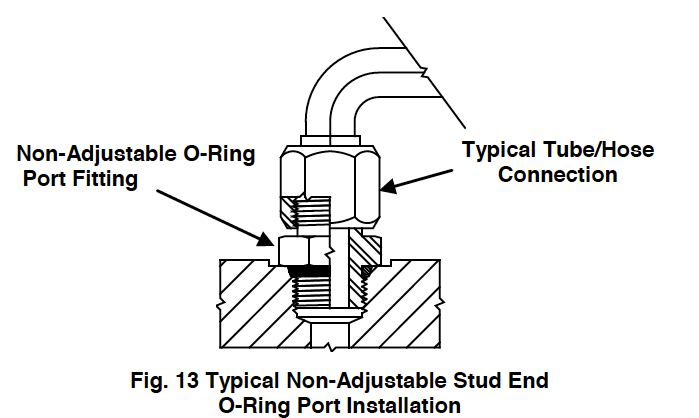

Typical Non-Adjustable Stud End O-Ring Port Installation

  1. Inspect components for damage or contamination.
  2. If 0-Ring is not present, install 0-Ring on the port end of the connector using a proper 0-Ring installation tool, taking care not to cut or nick the 0-Ring.
  3. Lubricate the 0-Ring with a light coat of system fluid or compatible oil.
  4. Screw stud into the 0-Ring port and tighten to recommended torque listed in the following tables.

Download this section of the catalog here (PDF)

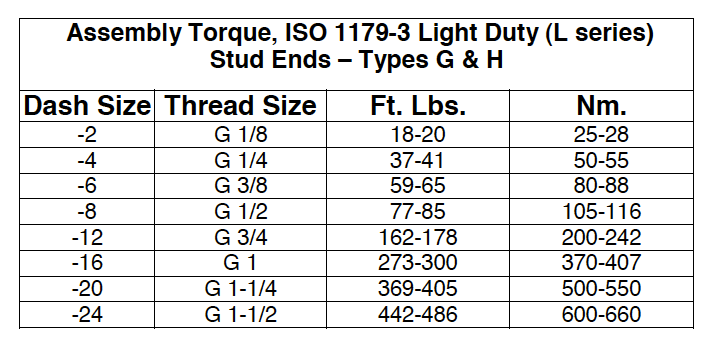

O Ring Assembly Torque ISO 1179-3 Light Duty Stud Edts Types G&H

ORing Assembly Torque ISO 6149-3 Light Duty L Series Stud Ends
