NPTF & BSPT Pipe Threads

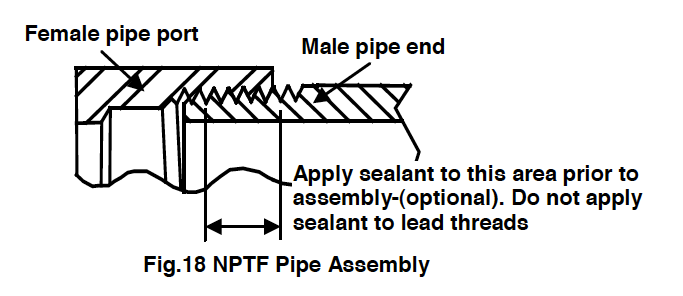

NPTF Pipe Assembly Drawing

Download this secton of the catalog here (PDF)

Method A. Installation Torque

  1. Inspect components for damage or contamination.
  2. Lubricate or apply compatible sealant to male pipe thread. See Fig.18.
  3. Screw fitting into port until hand tight. For shape fittings, take note of the intended alignment of the mating connectors.
  4. For straight fittings, tighten to recommended torque listed in the following table. For shape fittings, approximately 1/2 turns should be made and then torque to the desired orientation without exceeding maximum recommended torque.

Method B. Turns From Finger Tight (T.F.F.T.)

Note: Due to the variety of factors which affect the turns method, the values indicated are approximate and should be used only for initial installation, by experienced installation personnel.

  1. Inspect components for damage or contamination.
  2. Lubricate or apply compatible sealant to male pipe thread.
  3. Screw fitting into port and lightly wrench to seat threads.
  4. Mark fitting and adjacent surface to indicate initial seating position.
  5. For straight fittings, tighten using mean to maximum recommended T.F.F.T. listed in Table I.
  6. For shape fittings, tighten to minimum T.F.F.T., and turn past to desired orientation.
  7. Mark final tightening position by extending the existing mark from the fitting to the adjacent surface.
