Adjustable Stud End O-Ring Port Fittings

  1. To protect the sealing surfaces and prevent dirt and other contaminants from entering the system, do not remove the protective caps and/or plugs until it is time to assemble the components.
  2. Prior to assembly, remove protective caps and/or plugs and inspect the connector and the port to ensure both mating parts are free of burrs, nicks, scratches or any foreign material.
  3. If 0-Ring is not present, install 0-Ring on the port end of the connector using a proper 0-Ring installation tool, taking care not to cut or nick the 0-Ring.
  4. Lubricate the 0-Ring with a light coat of system fluid or compatible oil.
  5. Position #1 - The 0-Ring should be located in the groove adjacent to the face of the back-up washer. The washer and 0-Ring should be positioned at the extreme top end of the groove as shown.
  6. Position #2 - Position the locknut to just touch the backup washer as shown. The locknut in this position will eliminate potential back-up washer damage during the next step.
  7. Position #3 - Install the connector into the straight thread port until the metal back-up washer contacts the face of the port as shown.
    • Caution: Over tightening beyond contact can cause washer damage, if the washer is not supported by the locknut.
  8. Position #4 - Adjust the connector to the proper position by turning out (counterclockwise) up to a maximum of one turn as shown to provide proper alignment with the mating connector, tube assembly or hose assembly.

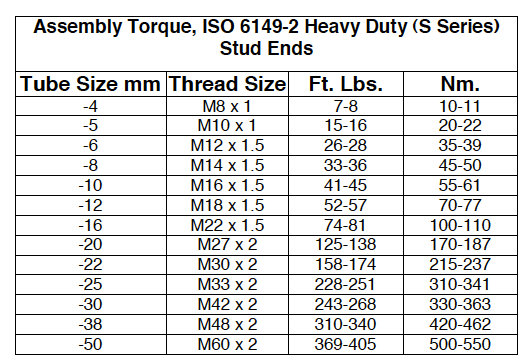

  9. Position #5 - Using two wrenches, use the backup wrench to hold the connector in the desired position and then use the torque wrench to the tighten the locknut to the appropriate torque level shown in the following tables.
  10. Visually inspect the joint, where possible, to ensure the 0-Ring is not pinched or bulging out from under the washer and that the backup washer is properly seated flat against the face of the port.

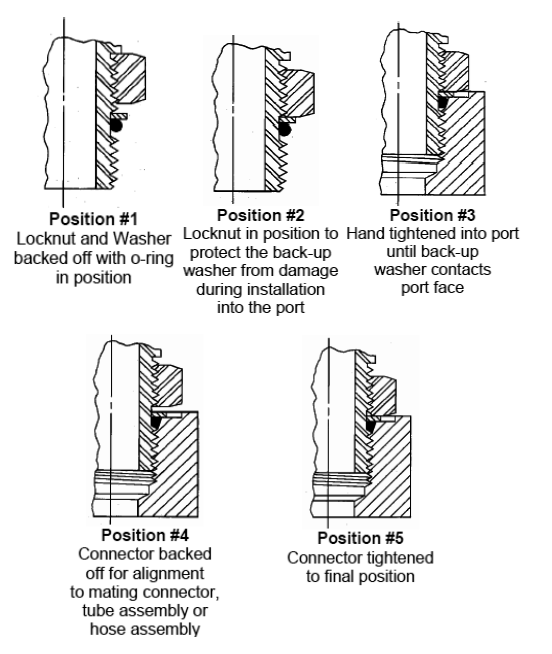

Assembly Adjustable Stud End O Ring Port Fittings - Positions

Download this section of the catalog here (PDF)

Assembly Torque SAE J1926-3 Light Duty (L series) Stud Ends - Ref SAE J514 Tube Fittings and Port Plugs

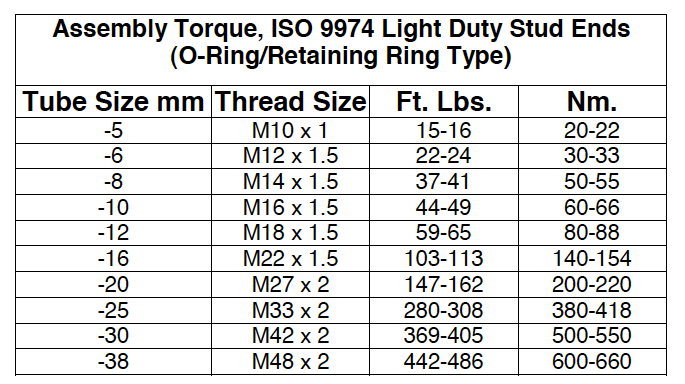

Assembly Torque ISO 9974 Light Duty Stud Ends O-Ring Retaining Ring Type

Download this section of the catalog here (PDF)
